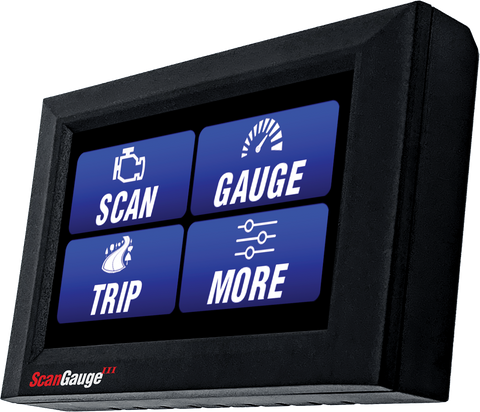

ScanGauge 3 Touch Screen OBD2 Scan Tool System Monitor

  • Sale
  • $419.95
  • Regular price $435.00


⭐⭐⭐All new ScanGauge 3

⭐⭐⭐Free standard shipping in Australia

ScanGauge-III can help you monitor your vehicle’s most vital systems and provide the kind of real-time information you’ve been missing. Features include built-in digital gauges, 5 sets of trip data and an easy-to-use Scan Tool that shows both set and pending trouble codes — all in an ultra compact design that installs in minutes.

The new ScanGauge-III features capacitive touch screen with over 16 million possible colours, audible and visual alarms, automatic X-Gauge configuration and configurable gauges display for up to 9 gauges on each screen saved to your preference.




Gauge Name
AVG Average Fuel Economy

CLSD LP / OPEN LP

Fuel System Loop Status
CPM Cost Per Mile/KM

FIA / CIA

Intake Air Temperature
FPR Fuel Pressure

FWT / CWT

Water Temperature

GPH

LPH

Gallons Per Hour

Litres Per Hour

MAP

BST

Manifold Absolute Pressure

Boost

MPG

KPG

MPL

LHK

KPL

Miles Per Gallon

Kilometers Per Gallon

Miles Per Litres

Liters Per 100Km

Kilometeres Per Liter

MPH

KPH

Miles Per Hour

Kilometers Per Hour

RPM Revolutions Per Minute
TFC Trip Fuel Cost
TPS Throttle Position Sensor
VLT Battery Voltage
IGN Ignition Timing
LOD Engine Loading
HPR Horsepower



The ScanGauge can check for Engine Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves and their meanings. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.

  • Reads Trouble Codes
  • Clears Trouble Codes
  • Shows Conditions When Trouble Was Detected (RPM, COOLANT, TEMP etc)
  • Turns Off “CHECK ENGINE” Light
  • Shows When Onboard Tests Have Been Completed And Vehicle Is Ready To Pass OBDII emissions Testing



GREAT FEATURES

Easy to Install No Tools Required

Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.

No Batteries Required

The single connection to the diagnostic connector under the dashboard is all that is needed.

Automatic Protocol Determination

ScanGauge automatically determines the protocol your vehicle uses and connects.

6-Foot Cord and Suction Cup Windshield Mount

The ScanGauge can be mounted up to 6 feet (1.8 Meters) from the under-dash diagnostic connector. The included Suction Cup Windshield Mount allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.

User-Friendly Capacitive Touch Display

Simple touch operation allows you quickly and easily access the powerful features of the ScanGauge. Swiping two fingers up or down will raise and lower the brightness

Colour Backlight Display

Match your instrument panel for an integrated look.

English & Metric Units

The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including KM’s, Litres, Celsius, and kPA.

Compact Design

Unit Dimensions 12.7 x 8.1 x 2.55 cm



PACKAGE INCLUDES

ScanGauge-3 Unit

ScanGauge cable (1.8m)

Suction Cup Mount
